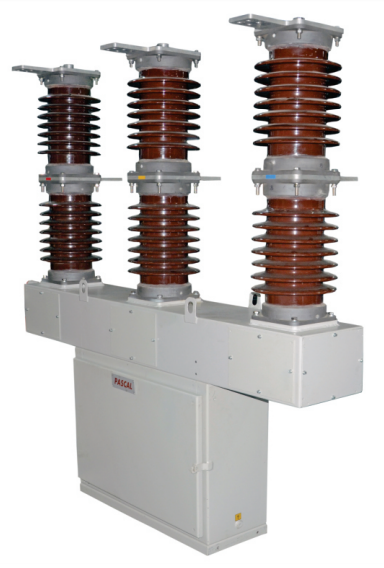

The PSI-36 range of Porcelain Clad Outdoor Vacuum Breaker are designed for distribuon networks up to 36kV, Short Circuit Breaking Current up to 26.3kA and rated current up to 1600A. The Breakers are designed to meet all types switching applicaons
| (Governing Applicable Standard: IEC-62271-100 /IS-13118) | ||
| Rated Voltage | kV | 36 |
| Frequency | Hz | 50 |
| Short-duraon power- frequency withstand voltage | kVrms | 70 |
| Lightning impulse withstand Voltage | kVp | 170 |
| Short-circuit breaking current | kA | 26.3 |
| Short-me withstand current, 3 s | kA | 26.3 |
| Short Circuit Making Current | kAp | 65.75 |
| Peak withstand current | kAp | 65.75 |
| Normal current of Outdoor Breaker | A | 630 to 1600 |
| Operang Sequence | kA | 0-0.3s-CO-3 min-CO |
| Degree of Protecon | kA | IP-55 |
| E2-M2-C2 Operaon | kA | Complied |
